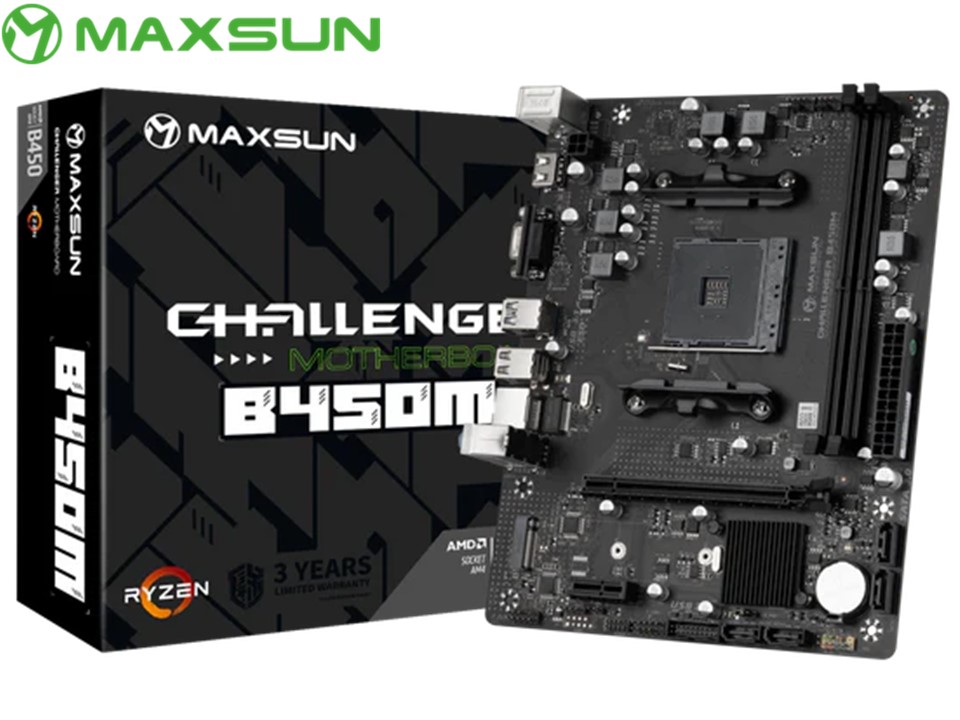

MaxSun Challenger B450M Ryzen Gaming Motherboard
5 phase power supply
Full load R5 5600/4500/3600
Full speed M.2
Support NVMe/SATA protocol
Memory overclocking
Dual channel 2*DIMM
TECH SPECS:
CHIPSET AMD® B450 Chipset
CPU (Max Support) AMD Socket AM4, support for: AMD Ryzen™ 5000 G-Series Processors/ AMD Ryzen™ 5000 Series Processors/ AMD Ryzen™ 4000 G-Series Processors/ AMD Ryzen™ 3000 Series Processors
MEMORY 2x DDR4, Maximum Memory Capacity 64GB
Memory Support DDR4 3200(OC)/ 2933(OC)/ 2666(OC)/ 2400(OC) MHz
Supports AMD® A-XMP OC
Supports Dual-Controller Dual-Channel mode
ONBOARD GRAPHICS 1x VGA
*Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
1x HDMI™port
*HDMI™ port supports up to 4K@30Hz
*Graphics specifications may vary between CPU types.
EXPANSION SLOT 1x PCIe 3.0 x16 slot
1x PCIe 3.0 x1 slot
STORAGE M.2 slot (Key M), type 2242/2280 (supports PCIe 4.0 x4 mode)
4x SATA 6Gb/s ports
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB *Front USB (Total 4 ports)
2x USB 3.2 Gen1 Type A
2x USB 2.0
*Rear USB (Total 4 ports)
2x USB 3.2 Gen1 Type A
2x USB 2.0
LAN Realtek® RTL8111H 1G LAN
AUDIO Realtek® ALC897 Codec
5.1-Channel High Definition Audio
INTERNAL I/O 1x 24-pin Power Connector(ATX_PWR)
1x 4-pin Power Connector(CPU_PWR)
1x CPU Fan
1x System Fan
1x PS/2 interface
1x M.2 slots (Key-M)
4x SATA 6Gb/s ports
1x 4-Pin SPEAKER
1x Front Audio
1x COM_A Port
1x 9-Pin DEBUG_CON
1x CLR CMOS
LED FEATURE Without Debug LED
OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
FORM FACTOR M-ATX
220mm x 175mm
