Intel LGA 1700 Socket | 3+1+1 Phase Power Design | Supports
12th/13th/14th Gen Core Processors | 2x DDR4 DIMM Slots | PCIe
4.0 x16 Slot | 1x M.2 NVMe Gen3 x4 Slot | Gigabit Ethernet | HDMI
& VGA Outputs | Compact mATX Form Factor
TECH SPECS:

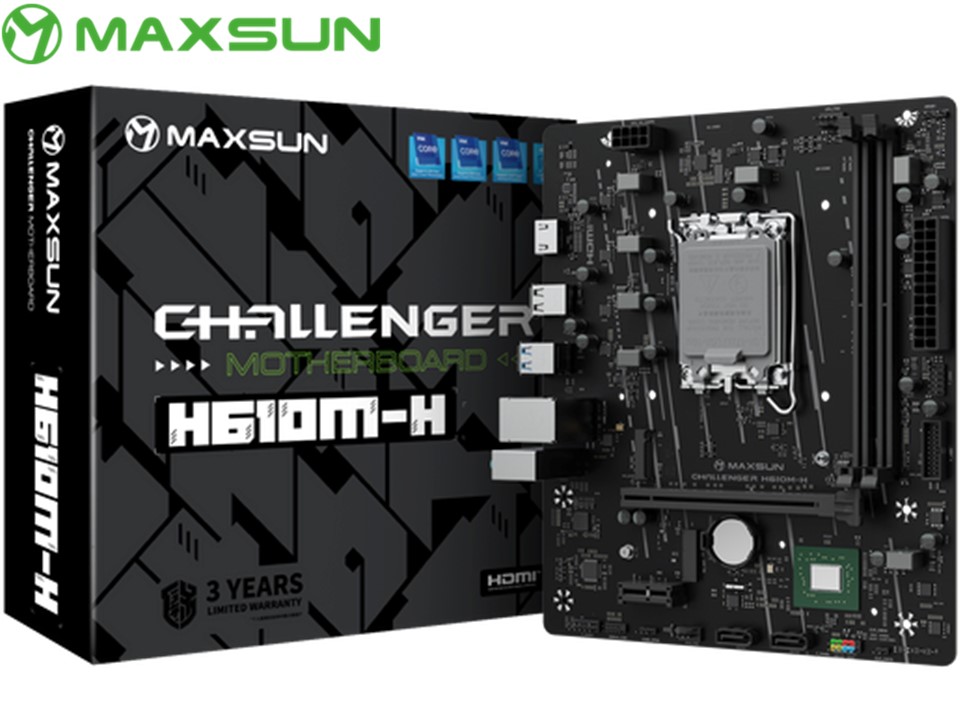

Model MS - Challenger H610M-H
Form Factor MicroATX (225 × 185mm)
CPU Socket Supports LGA1700 socket, compatible with Intel® 12th / 13th / 14th Gen CPUs
Chipset Intel® H610 Chipset
Memory 2 × DIMM DDR4 slots, up to 64GB total
Supports Dual-Channel Memory Technology
Supports 2133 / 2666 / 2933 / 3200MHz memory frequency
Supports Intel® XMP memory overclocking
Display Output 1 × HDMI™ 1.4 port, up to 4096 × 2160 @30Hz resolution
Expansion Slots 1 × PCIe X16 4.0 Slot
1 × PCIe X1 3.0 Slot
Audio Integrated Realtek ALC1220VA3 Audio Codec
Network Integrated Realtek 8111M LAN (10/100/1000Mbps)
1 × RJ45 Ethernet Port
Storage 1 × M.2 Slot (Supports 2242/2280 PCIe X4/X2 3.0 NVMe SSD only)
2 × SATA 3.0 Ports
USB Ports Rear I/O:
2 × USB3.2 Gen1 Ports
3 × USB2.0 Ports
Internal Headers:
1 × USB2.0 Header (for 2 ports)
1 × USB3.2 Gen1 Header (for 2 ports)
Power Connectors 1 × 24-pin ATX Main Power Connector
1 × 8-pin ATX 12V CPU Power Connector
Others 1 × System Fan Header
1 × CPU Fan Header
1 × Front Panel Header (F_PANEL)
