Intel® LGA1851 Socket for Core™ Ultra processors
Intel® B860 Chipset for enhanced performance
Dual-Channel DDR5 up to 96GB and 8600MHz (OC)
4K Support via HDMI™ 2.0 and DP 1.2
PCIe Expansion: PCIe 5.0 x16, PCIe 4.0 x4, PCIe 4.0 x1
Realtek ALC897 Audio for immersive sound
Intel® AX101 Wi-Fi 6 & Bluetooth 5.2
Dual M.2 Slots for PCIe 5.0/4.0 storage (2280 length)
3 x SATA 6Gb/s connectors
Multiple USB & Power Headers for customization
TECH SPECS:

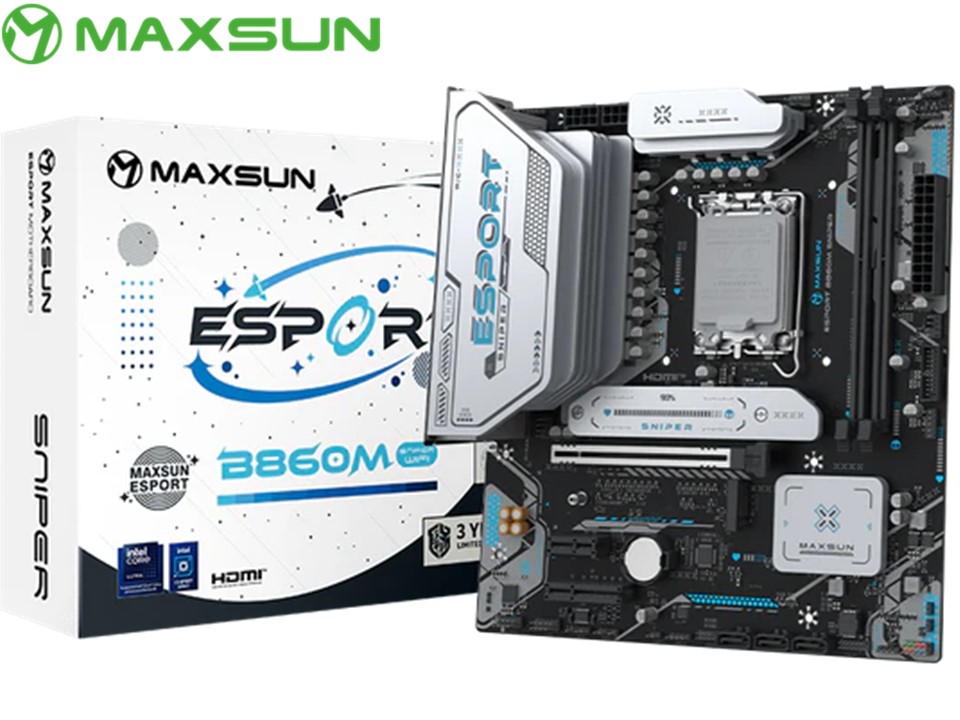

Model MS-eSport B860M SNIPER WIFI
Motherboard Size M-ATX (245x225mm)
CPU Socket Intel® LGA1851 socket, compatible with Intel® Core™ Ultra processors
Chipset Intel® B860 Chipset
Memory 2 DIMM DDR5 memory slots, supporting up to 96GB
Supports dual-channel memory technology
Memory frequency support: XMP 4800/5000/5200/5400/5800/6000/6200/6400/6600(OC)/6800(OC)/7000(OC)/7200(OC)/7600(OC)/8000(OC)/8200(OC)/8400(OC)/8600(OC) MHz
Display 1 x HDMI™ 2.0 port, supports up to 4K @ 60Hz resolution
1 x DP 1.2 port, supports up to 4K @ 60Hz resolution
Expansion Slots 1 x PCIe x16 slot (supports PCIe 5.0 x16 mode)
1 x PCIe x4 slot (supports PCIe 4.0 x4 mode)
1 x PCIe x1 slot (supports PCIe 4.0 x1 mode)
Audio Integrated Realtek ALC897 audio chip
Network Integrated Realtek RTL8125BG/D Ethernet chip
Onboard Intel® AX101 Wi-Fi 6 and Bluetooth 5.2 wireless network card
Storage 1 x M.2 slot, supports PCIe 5.0 x4/x2 modes, 2280 length
1 x M.2 slot, supports PCIe 4.0 x4/x2 modes, 2280 length
3 x SATA 6Gb/s connectors
USB and Power Connections 1 x 24-pin ATX power connector
1 x 8+8-pin +12V power connector
2 x 3-pin ARGB connectors
1 x 4-pin NRGB connector
1 x COM port header
CLR_CMOS reset button
1 x 4-pin CPU fan header
1 x 4-pin PUMP water pump header
2 x 4-pin chassis fan headers
